Product Overview

Product Description

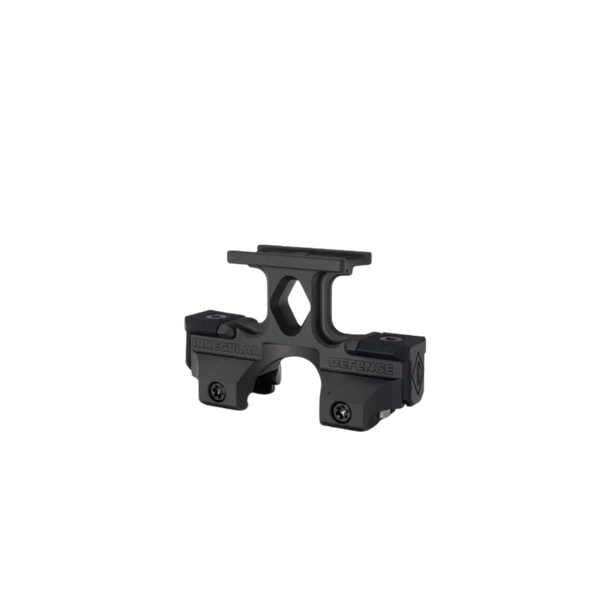

he Optic Mount Modular Micro Gen 2 is a lightweight, elevated optic mount built for modern shooting applications, including passive aiming with night vision systems and use with helmets, gas masks, and other PPE. Designed around the Aimpoint Micro T2 footprint, the modular platform can be used as a standalone mount or paired with OMM SHORTBOARD or LONGBOARD attachments for expanded capability.

The OMM SHORTBOARD configuration is compatible with flip-to-side magnifiers mounted behind the optic or laser systems positioned in front of the mount, while the OMM LONGBOARD provides additional clearance for clip-on thermal systems. The reversible design allows the user to configure the mount with either a forward or rearward lean based on preference.

Machined from 7075-T6 aluminum and finished with Type III hardcoat anodizing, the mount also features dual low-profile 304 stainless steel clamps with a black oxide finish for secure attachment. Multiple weight-saving relief cuts reduce overall mass while maintaining strength and rigidity.

Specifications:

Height: 2.25"
Width: 1.22"
Length: 3.6"
Weight: 3.6 oz
Optical Centerline: 2.5"

Features:

Compatible with Aimpoint Micro T2 pattern optics
Modular design accepts OMM SHORTBOARD and LONGBOARD attachments
Designed for heads-up shooting posture and passive NVG aiming
SHORTBOARD compatible with magnifiers and laser systems
LONGBOARD compatible with clip-on thermal systems
Reversible forward or rearward lean configuration
Machined from 7075-T6 aluminum
Type III hardcoat anodized finish
Dual low-profile 304 stainless steel clamps
Multiple weight-saving relief cuts
Includes mounting hardware and driver bits
Available in Black and FDE
Designed, developed, and manufactured in the USA

Torque Specification:
35 in-lbs for clamp hardware

Note: Due to the anodizing process, slight color variations may occur between production batches.
