Product Overview
Product Description

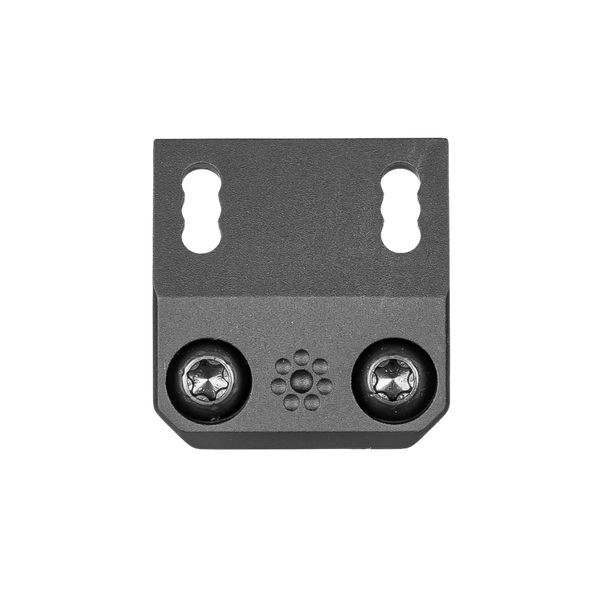

The patented Arisaka Offset Scout Mount is designed specifically for the Surefire Scout Light M600 and M300 series weapon lights, the Modlite PLH and OKW weapon lights, the Arisaka 300, 600 and 18650 Series Lights, the Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), and Olight Odin. It replaces the stock Picatinny rail adapter with a low profile mount for SIG’s LTAW handguard. The Offset Scout Mount is very low profile at less than 0.20" thick.
When used on the side mounting surfaces, the Offset Scout Mount places the light at a 20 degree angle and tucks it in closer to the rail system. Oriented upwards, the light sits at approximately the 1:30 or 10:30 clock positions.
The Offset Scout Mount also provides three lateral mounting positions for the light body, allowing the user to position the light closer to or farther from the top rail, front sights, or other accessories. These three positions span approximately 0.240". When used with Arisaka light bodies, even more clearance can be gained for larger front sights.
M620, M951/2, and M961/2 series lights can also be used with the Offset Scout Mount with the addition of the Arisaka Offset M620 Adapter.
The mount is CNC machined from 6061-T651 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach the light body to the mount.
Compatibility:
Modlite PLH/PLHv2/PLHv3 and OKW/OKWv2; Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V; Streamlight Protac Rail Mount 1, 2, and HL-X (non-laser); Olight Odin, CD REIN; Arisaka 300, 600, and 18650 Series
Specifications:
- Length: 1.265"
- Weight: 0.4 oz
- Material: 6061-T651 Aluminum
- Finish: MIL-A-8625 Type III Hard Coat Anodized
- Mounting Interface: SIG LTAW Handguard
- Profile Thickness: Less than 0.20"
- Mounting Angle: 20 Degrees (side mounting surfaces)
- Lateral Mounting Positions: 3, spanning ~0.240"
- Mounting Hole to Angle Distance: 0.405"
- Hardware Included: 2x 10-32x1/4" Torx Button Head Screws (T25/IP25), 2x 8-32x3/8" Torx Flat Head Screws (T20/IP25)
- Tools Required: T20/IP20 and T25/IP25 Torx Driver (not included); T9 Torx Driver required to remove stock Surefire Picatinny mount
- Recommended Torque: 25 in-lbs (LTAW screws), 20 in-lbs (light body screws, with Loctite 222 or 243)
- Patent: U.S. Patent No. 11385026 and other pending patents
- Made in the USA
