WHAT’S INCLUDED
-

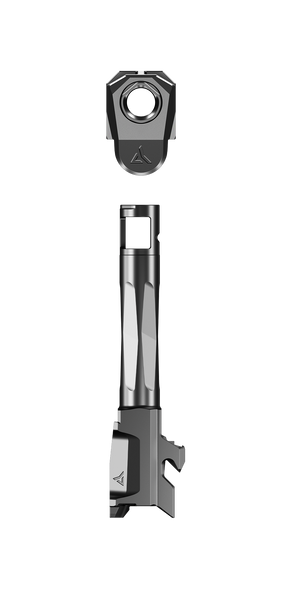

1 × RAMJET™ Ported Pistol Barrel
-
1 × AFTERBURNER™ Micro-Compensator
-
1 × INTRA-LOK® Tapered Screw
-
1 × TORX Bit
INSTALLATION GUIDE
-
Begin by removing the magazine and verifying that the chamber is empty for safety.
-
Detach the slide from the frame following the manufacturer’s recommended procedure.
-
Take out the recoil spring assembly and your current barrel.
-
Apply a light coat of oil to the exterior of the RAMJETâ„¢ barrel and barrel hood.
-
Insert the RAMJETâ„¢ barrel into the slide, then reinstall the recoil spring assembly.
-
Slide the AFTERBURNER™ micro-compensator onto the RAMJET™ barrel and secure it using the INTRA-LOK® tapered screw. Tighten to 15 in.-lb. using the TORX bit provided.
-
Reattach the slide assembly to the frame and perform a function check to ensure proper installation.
MAINTENANCE & CLEANING
-
Clean the RAMJET™ barrel bore as you would any standard pistol barrel—using a bore snake or cleaning patches.
-
For users expecting high round counts, we recommend applying heat-resistant gun oil to the barrel and compensator contact area before installation to help prevent carbon lock.
-
If carbon lock occurs between the AFTERBURNERâ„¢ and barrel, soak both components in gun oil or CLP overnight. Then rotate the compensator to loosen and separate.
